Product Instruction

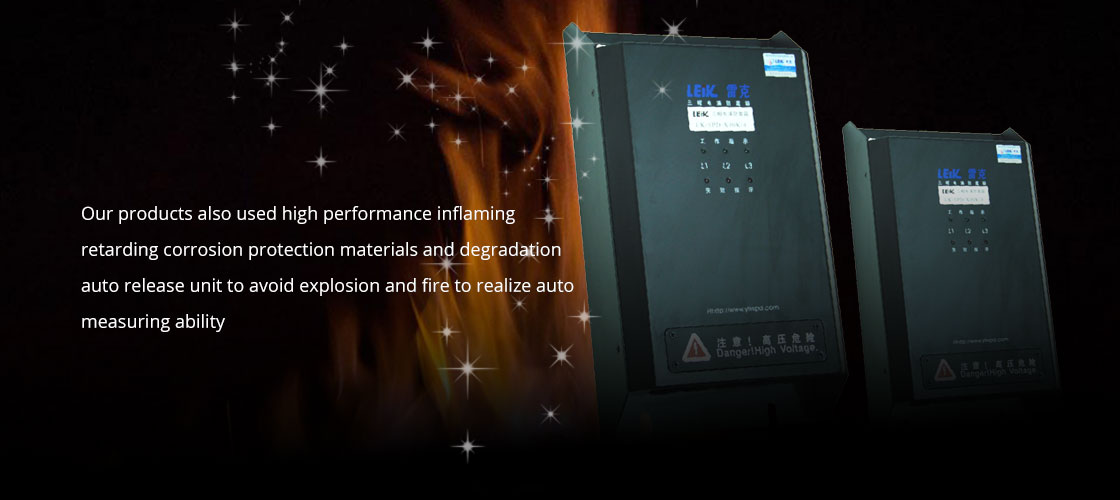

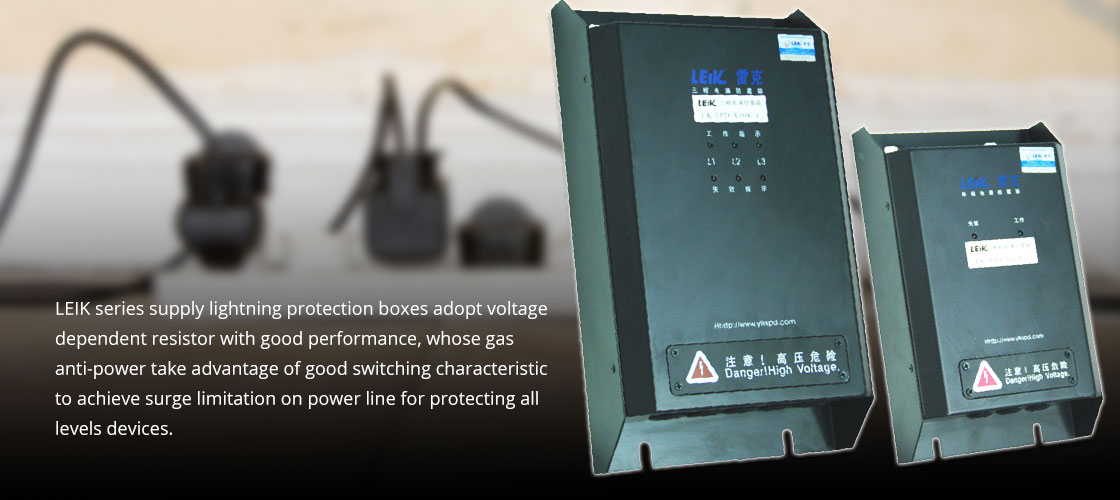

LEIK series supply lightning protection boxes adopt voltage dependent resistor with good performance, whose gas anti-power take advantage of good switching characteristic to achieve surge limitation on power line for protecting all levels devices. Our products also used high performance inflaming retarding corrosion protection materials and degradation auto release unit to avoid explosion and fire to realize auto measuring ability

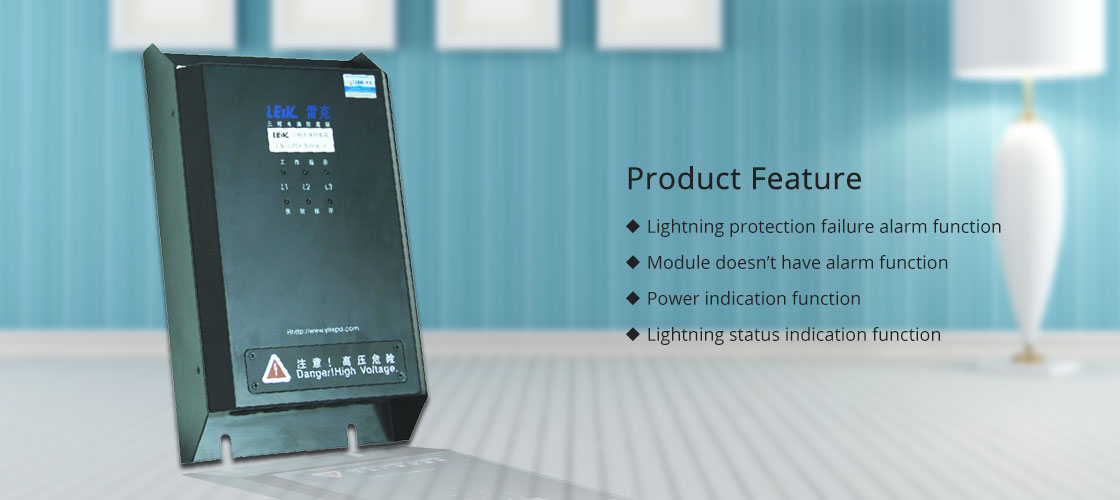

Product Feature

◆ Lightning protection failure alarm function

◆ Module doesn’t have alarm function

◆ Power indication function

◆ Lightning status indication function

Technical Parameter

Product Model

LK-SPD-X20K/2   LK-SPD-X40K/2   LK-SPD-X60K/2   LK-SPD-X80K/2   LK-SPD-X100K/2

Product application range

60KA-100KA：

◆  Construction total distribution board

◆  Outdoor distribution cabinet

◆  First level lightning failure and alarm indicator

◆  Power distribution cabinet and box don’t have installation site but need first level lightning facilities environment

20KA-40KA：

◆ is suitable for small machine room ,power distribution cabinet ,distribution cabinet box and  front end

   power circuit
