Product Features

Level C series low-voltage distribution system surge protection device owns great lightning discharge ability ,whose maximum discharge current up to 20-40kA，user can choose multiple combinations based on different power distribution system (TT/TN/IT).

Product Features

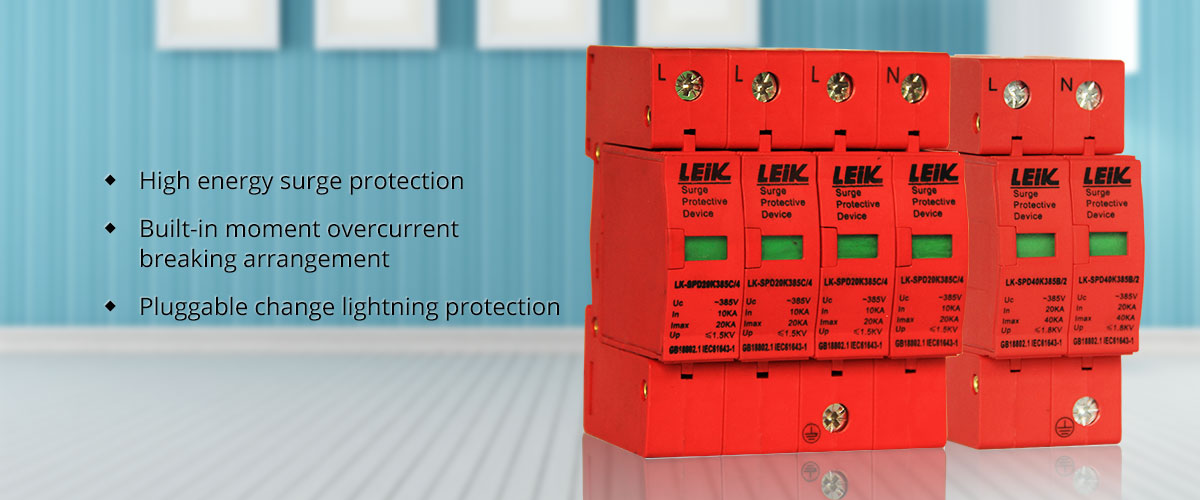

◆ High energy surge protection

◆Built-in moment overcurrent breaking arrangement

◆Pluggable change lightning protection module

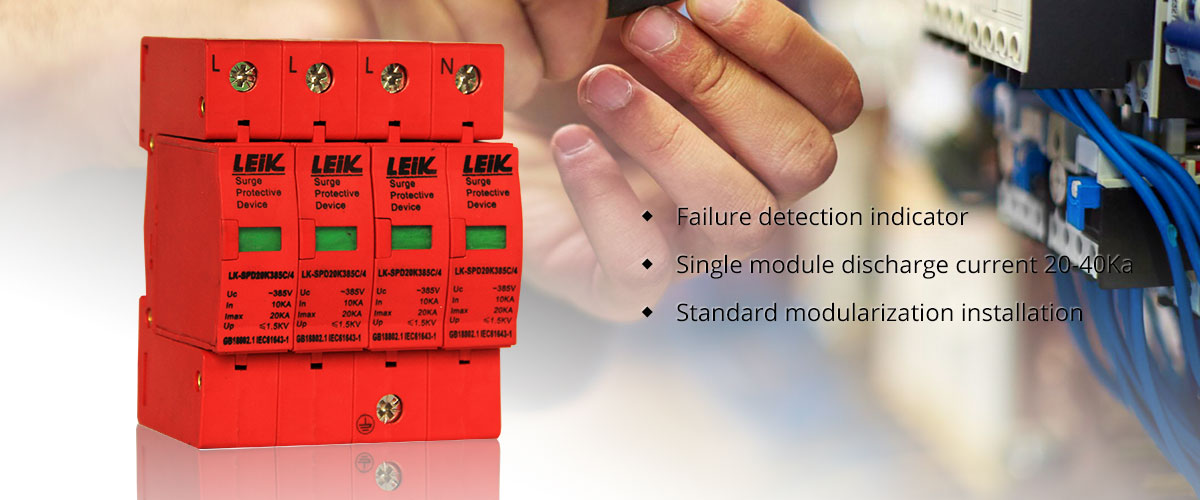

◆Failure detection indication

◆Single module discharge ability 20-40Ka

◆Standard module installation

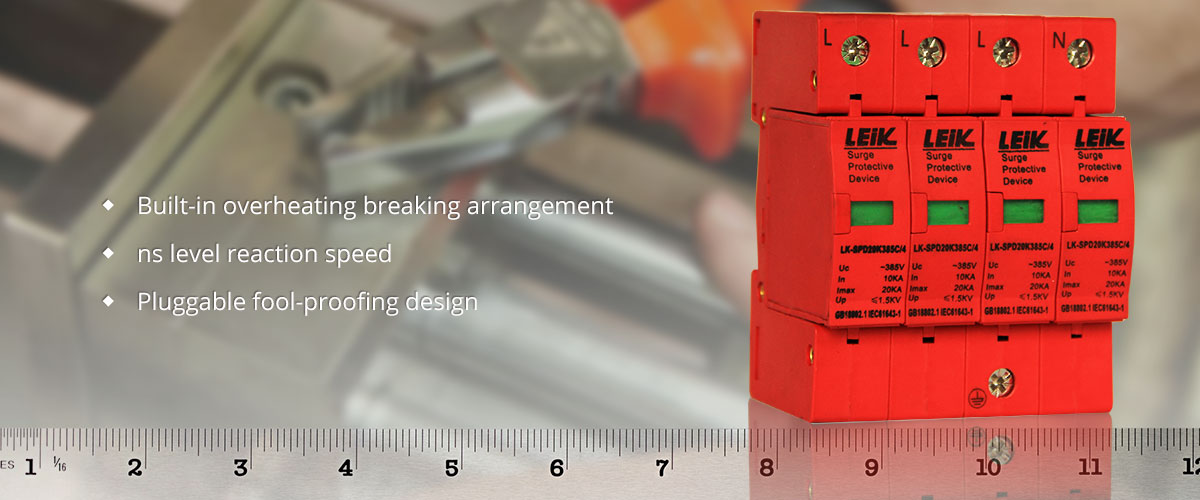

◆Built-in overheating breaking arrangement

◆ns level response speed

◆Insert and pull fool-proof design

Product applicable range

LK-SPD20K385C/2/3/4 application range ： construction important electric equipment distribution box，such as machine room distribution box
LK-SPD20K385C/3+1NPE application range ：suitable for 3+1/1+1 wiring mode distribution box and important equipment distribution box

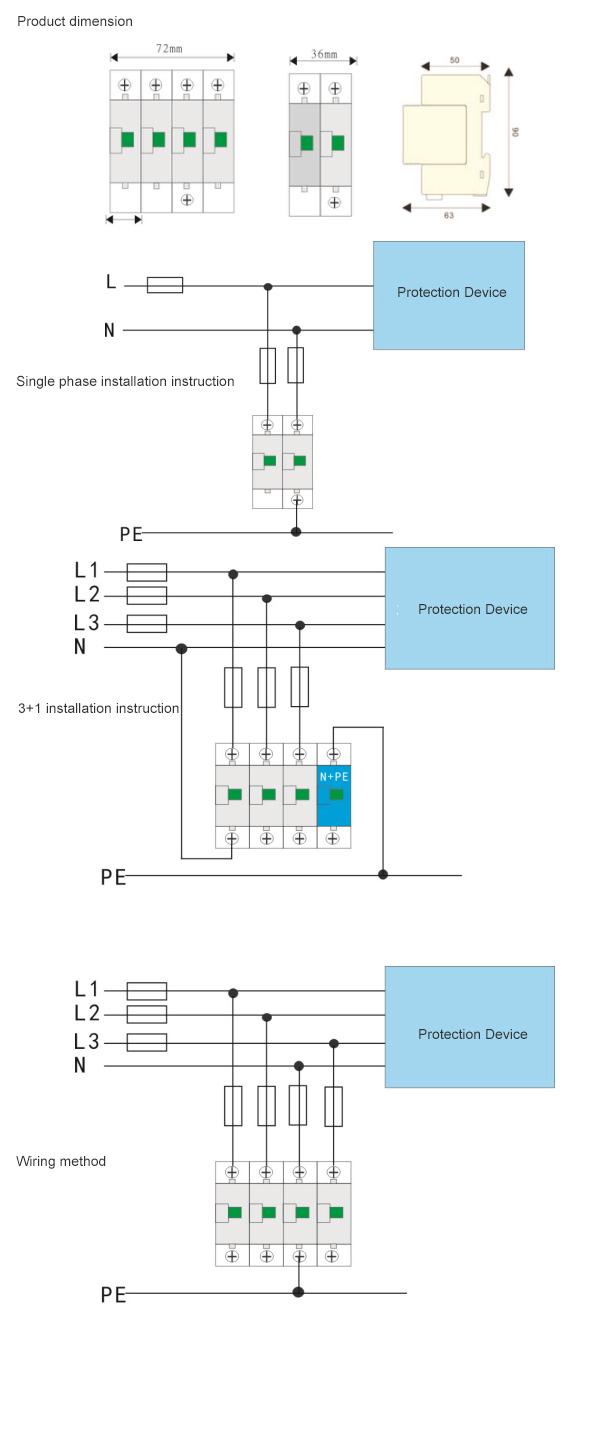

Product technical parameter
