Level D- Cascade Power SPD Series

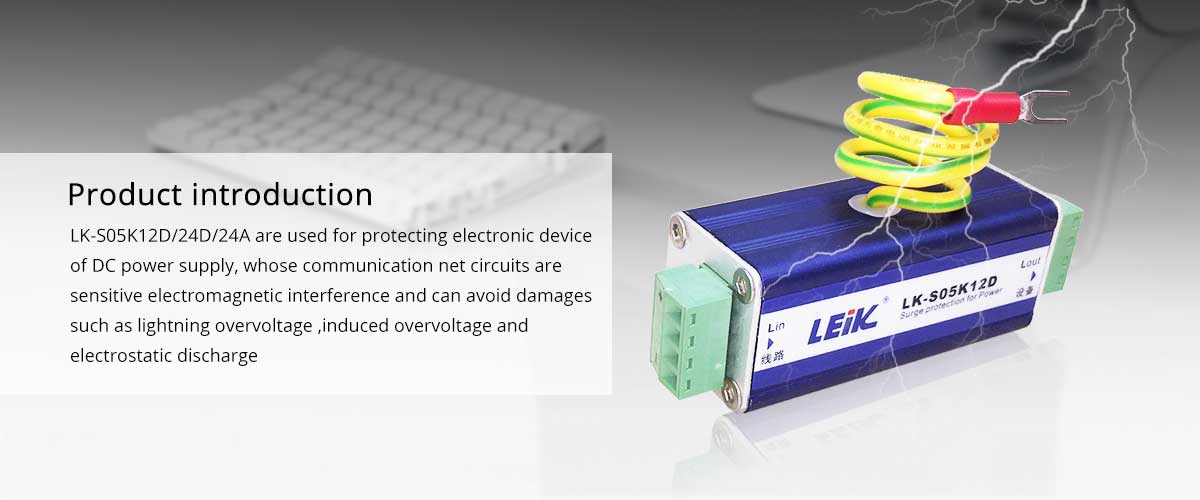

Product introduction
LK-S05K12D/24D/24A are used for protecting electronic device of DC power supply, whose communication net circuits are sensitive electromagnetic interference and can avoid damages such as lightning overvoltage ,induced overvoltage and electrostatic discharge

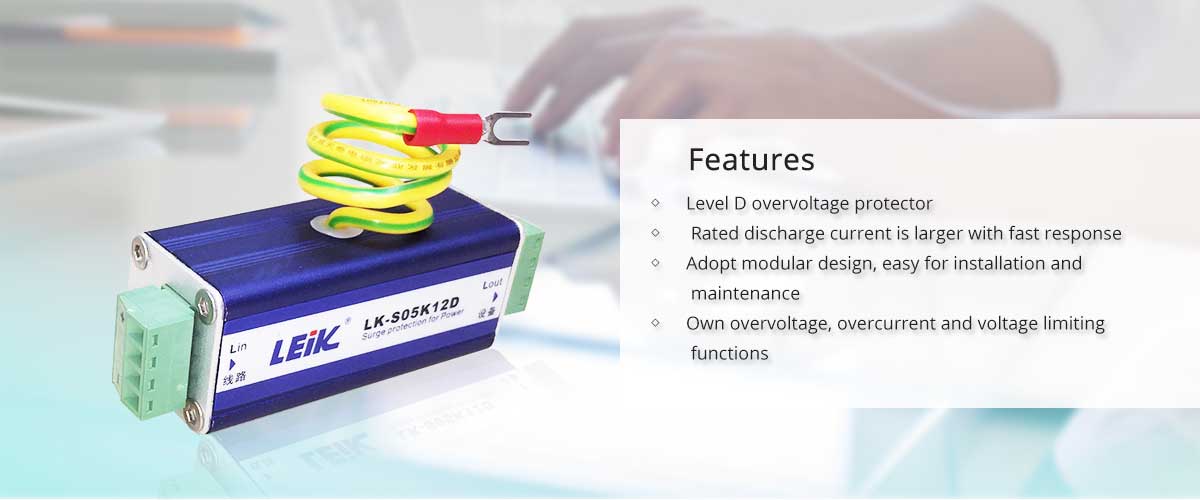

Features
Level D overvoltage protector
Rated discharge current is larger with fast response
Adopt modular design, easy for installation and maintenance
Own overvoltage, overcurrent and voltage limiting functions
Technical Parameter
Model | LK-S05K12D | LK-S05K24D | LK-S05K24A | |
Nominal Voltage | Un | 12V | 24V | 24V |
Maximum Continuous Working Voltage
| Uc | 18v | 36v | 36v |
Protection Level | Up | ≤30V | ≤60V | ≤100VAC |
Rated Discharge Current （8/20μs） | In | 5KA | 5KA | 5KA |
Maximum Discharge Current （8/20μs） | Imax | 10KA | 10KA | 10KA |
Response Speed | ta | ≤10ns | ≤10ns | ≤10ns |
Working Temperature | -40/+85℃ | -40/+85℃ | -40/+85℃ | |
CCoConnection | 1.0-2.5mm multistrand Or single strand wire
| 1.0-2.5mm multistrand Or single strand wire
| 1.0-2.5mm multistrand Or single strand wire
| |
DimDimension | 25*25*85mm | 25*25*85mm | 25*25*85mm |

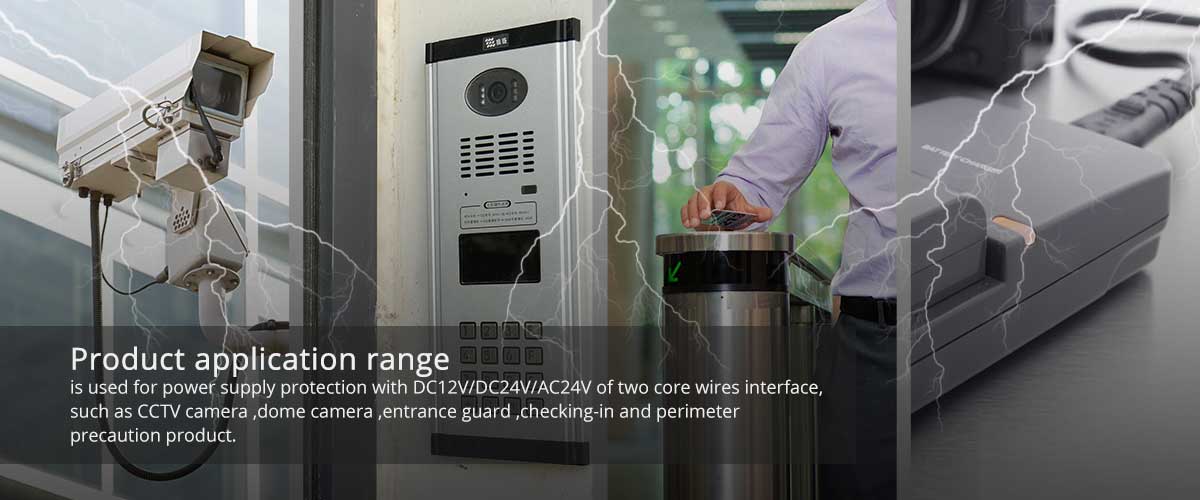

Product application range
is used for power supply protection with DC12V/DC24V/AC24V of two core wires interface, such as CCTV camera ,dome camera ,entrance guard ,checking-in and perimeter precaution product.
Product Specification
Instruction
1. Lightning protection need concatenation between protective equipment and power circuit
2. The input terminal should connect power ,output terminal should connect the positive and negative electrode about protective equipment ,can’t support reverse connection
3. Connect ground wire of lightning protection and lightning protection system
4. Our product don’t need special maintenance .When there happen breakdown ,user can check lightning protection .If it can’t return to normal ,user must change immediately.
Installation Instruction
