Outdoor 3MP HD network camera dedication.
Production Introduction

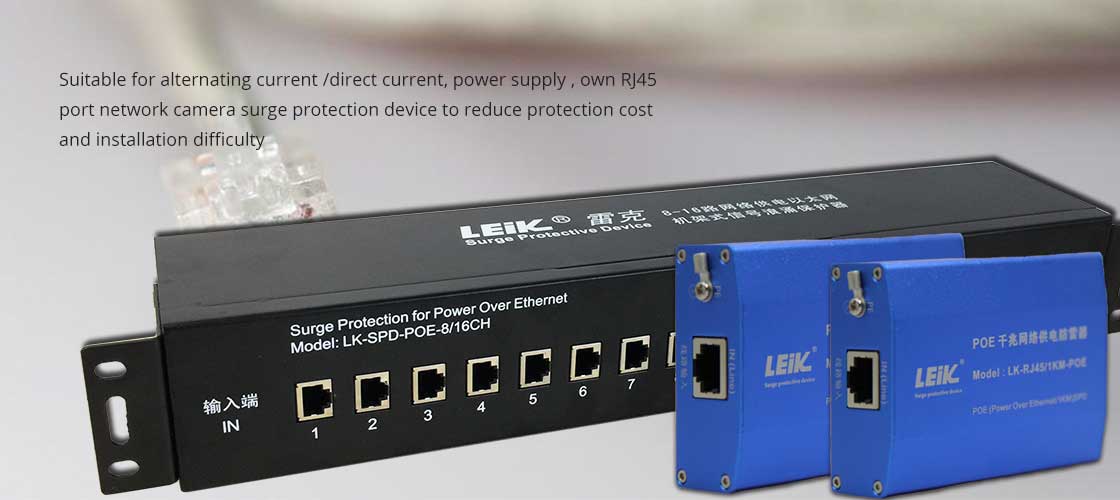

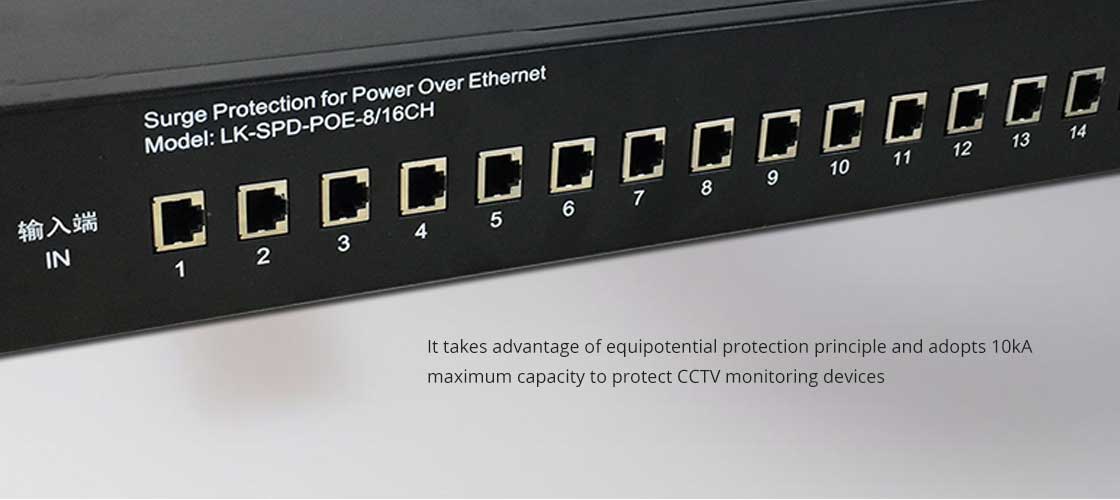

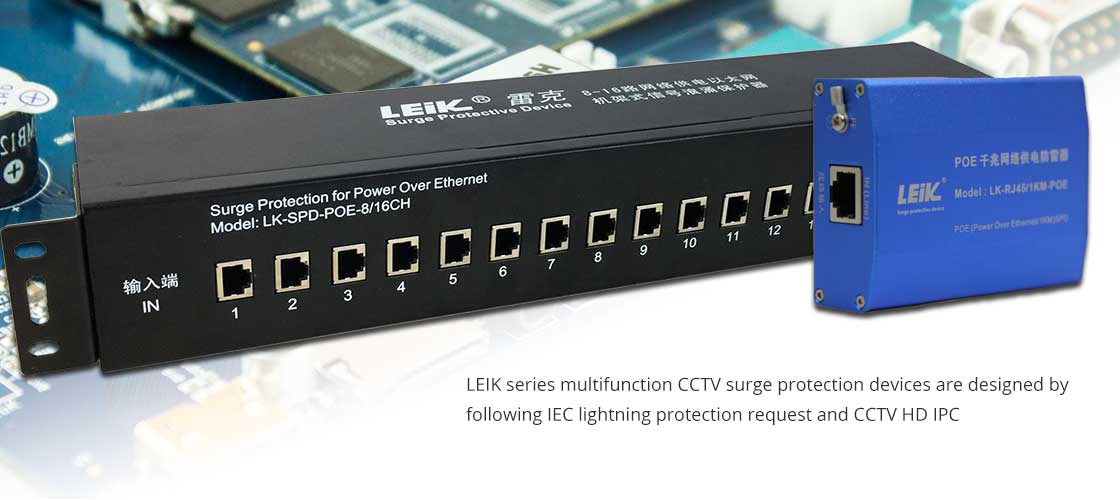

LEIK series multifunction CCTV surge protection devices are designed by following IEC lightning protection request and CCTV HD IPC, suitable for alternating current /direct current, power supply , own RJ45 port network camera surge protection device to reduce protection cost and installation difficulty . It takes advantage of equipotential protection principle and adopts 10kA maximum capacity to protect CCTV monitoring devices
Product Feature
a.10kA. Discharge current : 10kA
b. Two in one design
c. Low loss
d. Fast response
e. Power lightning protection failure LED indicate
Model | Type | LK-RJ45/1KM-POE / LK-RJ45/1KM-POE-8/16CH | ||
Signal(10/700μs) | Power(8/20μs) | |||
Rated operational voltage | Wire/ Wire | Un | 5V | 48V |
Wire/Ground | 48V | |||
Maximum sustainable operating voltage | Wire/ Wire Wire/Ground | Uc | 6V | 58V |
58V | ||||
Rated discharge current | In | 350A | 3KA | |
Maximum sustainable operating voltage | 2.5KV | 6KV | ||
Voltage protection level | Up | ≤50V | ≤650V | |
Transmission rate（3dB） | fg | > 1000MHz | ||
Interface type | RJ45 | |||
Protection number line | 1,2,3,4,5,6,7,8 | |||
Casing material | Aluminium alloy | |||
Insertion loss | lL | ≤0.2dB | ||
Order
LK-SPD-KPT2/1(AC220V)
LK-SPD-KPT2/1(6-24V/AC/DC)
