RJ45-100M- 1/16/24 channel network signal surge protection device
Product Introduction

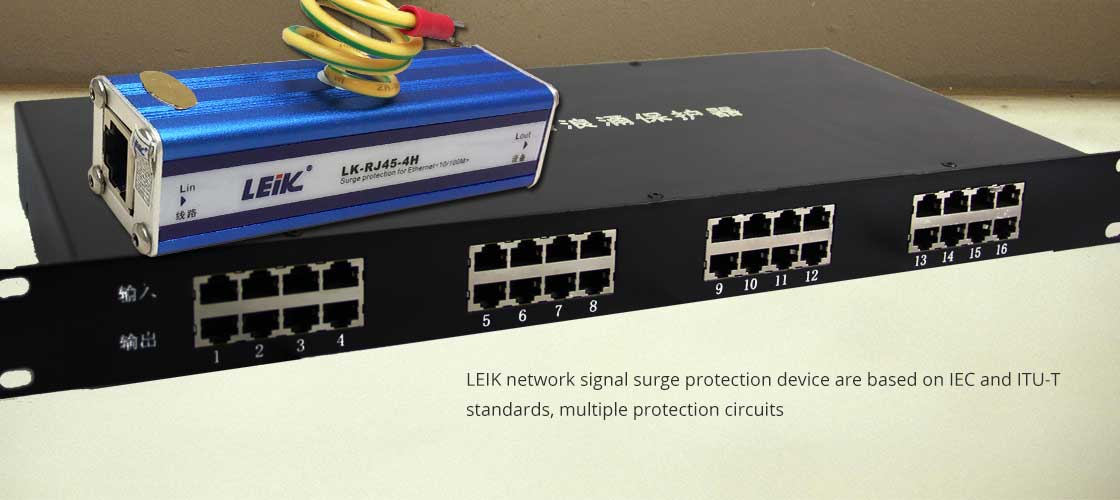

LEIK network signal surge protection device are based on IEC and ITU-T standards, multiple protection circuits, imported high speed protector are applied in the product, LEIK products are strong in low capacitance, fast reaction speed, residual low voltage output and excellent transmission. RJ45 connector with shield function is used in LEIK products, they are suitable for OVP with ETHERNET 10/100 network devices (SWTICH, HUB, ROUTER), control high voltage pulse to avoid the back devices are damaged by thunder and industrial surge.

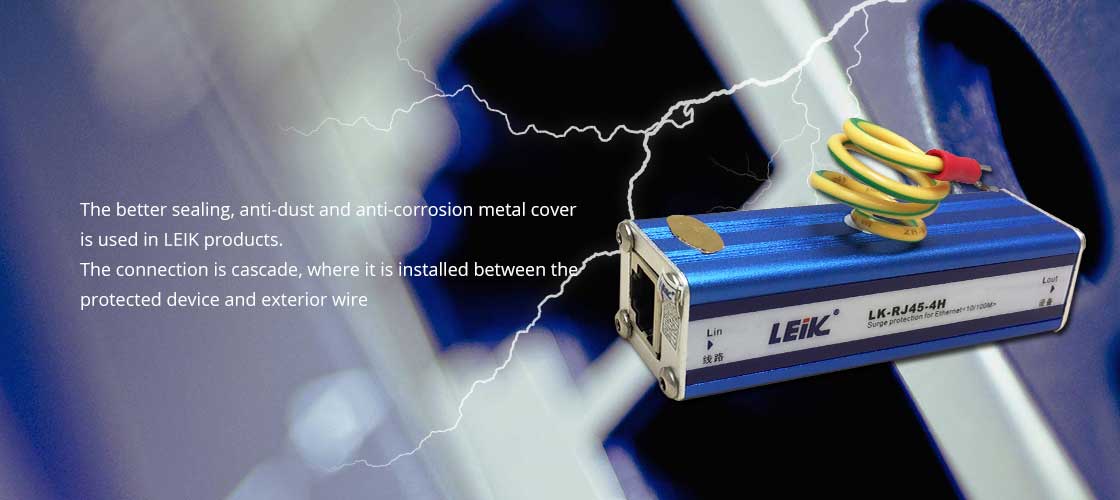

The better sealing, anti-dust and anti-corrosion metal cover is used in LEIK products.

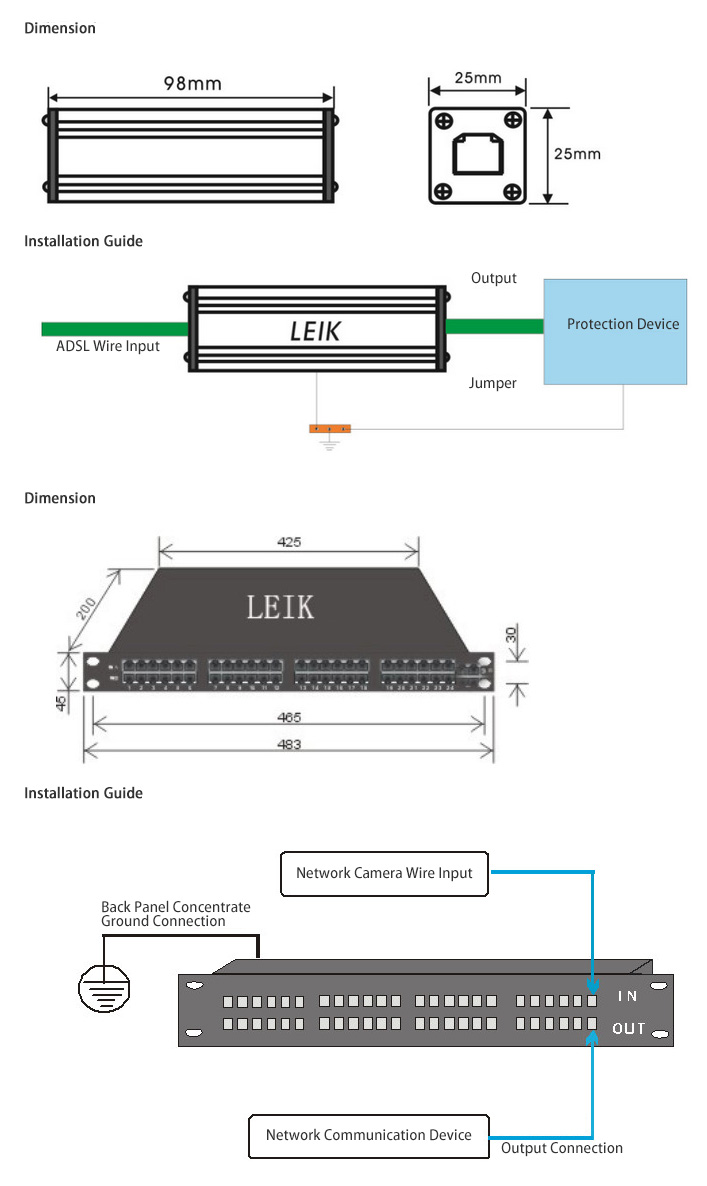

The connection is cascade, where it is installed between the protected device and exterior wire
FEATURES
◆ Network line surge over-voltage protection
◆ 10KA discharge current
◆ High speed reaction
◆ low voltage
◆ RJ45 connector with shielding
◆ Leak circuit from two levels to mine electricity
Specification
Product type | Type | LK-RJ45-4H | LK-RJ45-8H | ||
Un | 5V | 5V | |||
Maximum Sustainable Operating Voltage | Uc | 5.8V | 5.8V | ||
Standard Discharge Current (8/20μs) | Wire/Wire | In | 350A | 350A | |
Wire/ground | 5KA | 5KA | |||
Maximum Discharge Current(8/20μs) | Imax | 10KA | |||
Voltage Protection Level(@In) | Wire/Wire | ≤30V | ≤30V | ||
Wire/ground | ≤500V | ≤500V | |||
Transmission Speed（3dB） | fg | ～ 100MHz | ～ 100MHz | ||
Connector Type | RJ45 | ||||
Protection Wire Number | 1,2,3,6 1-8 | ||||
Cover Material |
| ||||
Insertion Loss | lL | ≤0.5dB | ≤0.5dB | ||
Insert Rheostat | R | 2.2Ω | 2.2Ω | ||
Product type | Type | LK-SPD-RJ45-16CH | |
Un | 5V | ||
Maximum Sustainable Operating Voltage | Uc | 5.8V | |
Maximum Sustainable Operating Current | IL | 10KA | |
Standard Discharge Current (8/20μs) | Wire/Wire | In | 350A |
Wire/ground | 5KA | ||
Maximum Discharge Current(8/20μs) | Imax | 10KA | |
Voltage Protection Level(@In) | Wire/Wire | Up | ≤30V |
Wire/ground | ≤500V | ||
Transmission Speed（3dB） | 10～100MHz | ||
Connector Type | RJ45 | ||
Protection Wire Number | P | 1,2,3,6 | |
Cover Material | · Or galvanized iron sheet | ||
Insertion Loss @100MHZ | IL | ≤0.5dB | |
Insert Rheostat | R | 2.2Ω | |
Product type | Type | LK-SPD-RJ45-24CH | |
Un | 5V | ||
Maximum Sustainable Operating Voltage | Uc | 5.8V | |
Maximum Sustainable Operating Current | IL | 10KA | |
Standard Discharge Current (8/20μs) | Wire/Wire | In | 350A |
Wire/ground | 5KA | ||
Maximum Discharge Current(8/20μs) | 10KA | ||
Voltage Protection Level(@In) | Wire/Wire | Up | ≤30V |
Wire/ground | ≤500V | ||
Transmission Speed（3dB） | 10～100MHz | ||
Connector Type | RJ45 | ||
Protection Wire Number | P | 1,2,3,6 | |
Cover Material | Or galvanized iron sheet | ||
Insertion Loss @100MHZ | IL | ≤0.5dB | |
Insert Rheostat | R | 2.2Ω | |
ORDER
LK-RJ45-4H
LK-RJ45-8H
LK-RJ45-16H
LK-RJ45-24H
Product Application Range
Communication Terminal Device Protection
Communication Service Room Device Protection

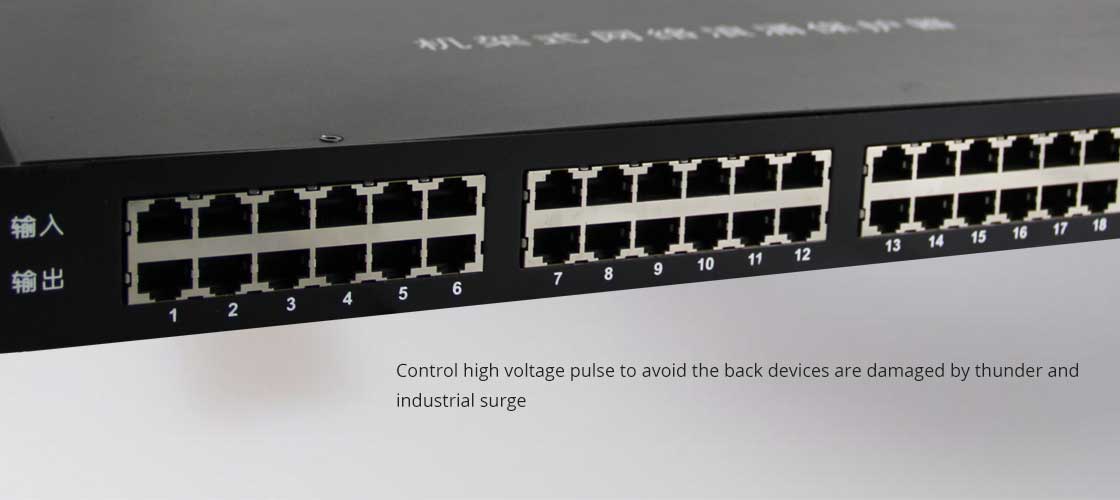

Applicable to OVP with ETHERNET 10/100 network devices (SWTICH, HUB, ROUTER), control high voltage pulse to avoid the back devices are damaged by thunder and industrial surge.
