Special Surge Protection Device with External POE and Power

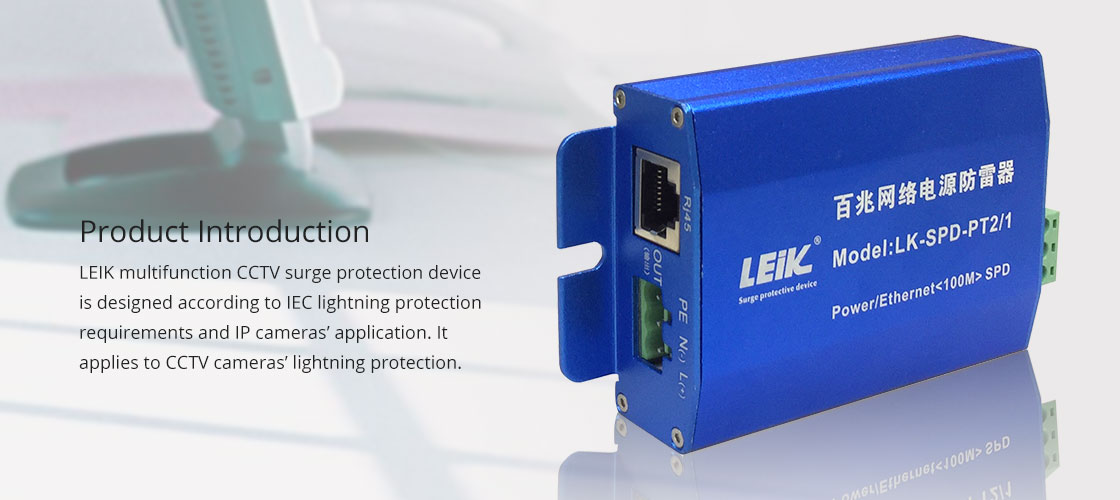

Product Introduction

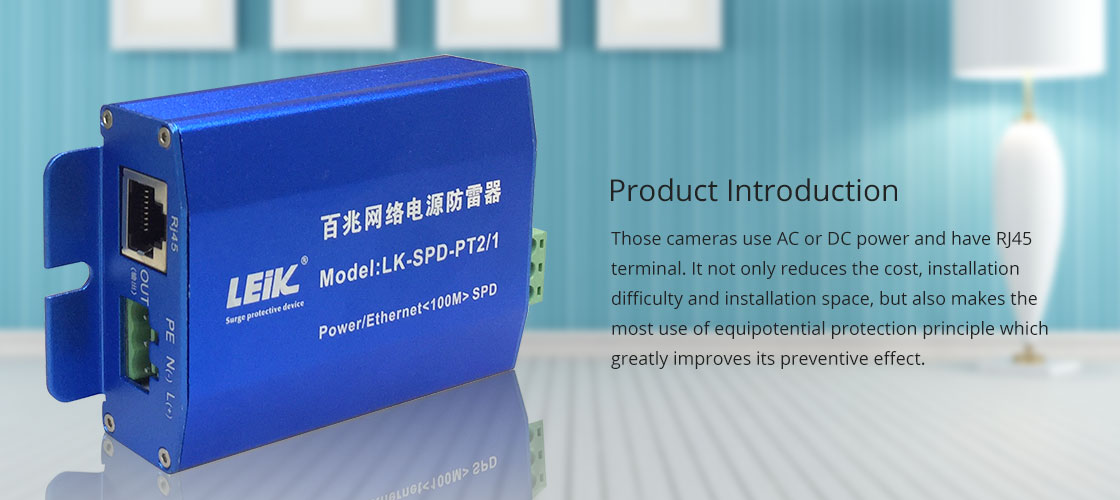

LEIK multifunction CCTV surge protection device is designed according to IEC lightning protection requirements and IP cameras’ application. It applies to CCTV cameras’ lightning protection. Those cameras use AC or DC power and have RJ45 terminal. It not only reduces the cost, installation difficulty and installation space, but also makes the most use of equipotential protection principle which greatly improves its preventive effect. The Maximum discharge current of LEIK products’ protection functions is 10kA. It adopts two-class series mode which can protect CCTV surveillance devices well.

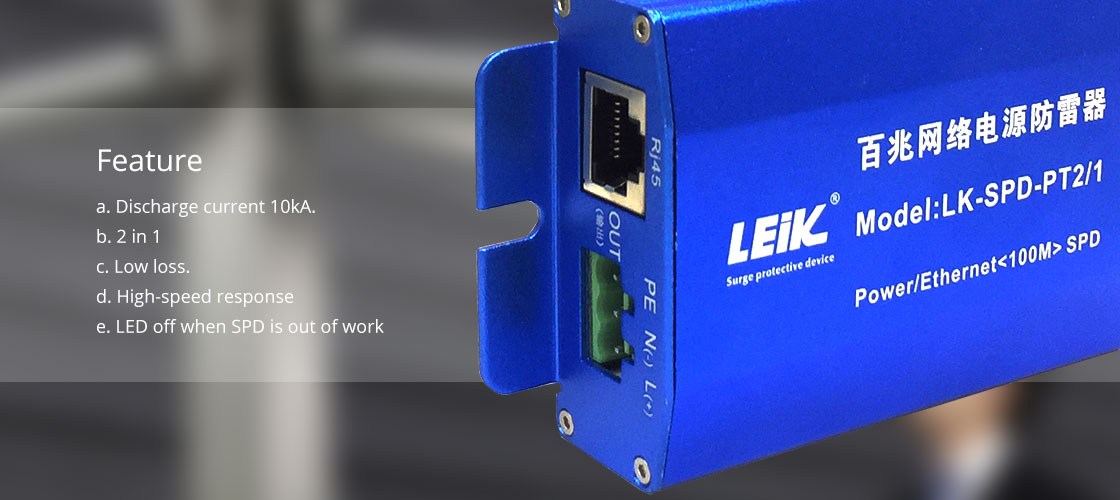

Feature
a. Discharge current 10kA.
b. 2 in 1
c. Low loss.
d. High-speed response
e. LED off when SPD is out of work
Specification
Model | LK-SPD-PT2/1(220V) | LK-SPD-PT2/1(6-24V) |
Function | Network/Power | Network/Power |
Power | ||
Fault indicator | When the indicator off which is on LINE IN side, SPD is out of work | |
Maximum sustainable operating voltage | 320V | 40 |
Limited voltage | 700V | 75 |
Max. discharge current | 10KA | 10KA |
Network | ||
Maximum sustainable operating voltage | 8V | |
Limited voltage | 15V | |
Max. discharge current | 10KA | |
Transmission rate | 10/100Mbps (Insertion loss＜0.2db) | |
Protection Line | Line 1,2,3,6 | |

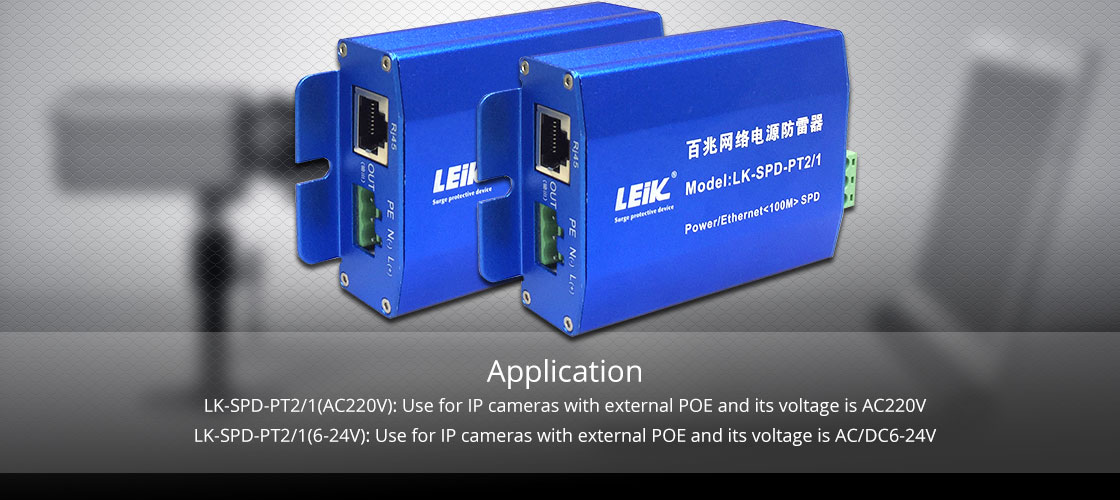

Application
LK-SPD-PT2/1(AC220V): Use for IP cameras with external POE and its voltage is AC220V
LK-SPD-PT2/1(6-24V): Use for IP cameras with external POE and its voltage is AC/DC6-24V
